Akytec TRM202 2-Channel Controller

Key features

Measuring the process value and its transformation according to the sensor type. Displaying the process values and configuration parameters on two 4-digit LED displays Adjusting measured parameters and fixing errors of the converters• Displaying measurement results on a 4-digit LED screen Creating an alarm signal in case of converters’ failure,...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality
  • Measuring the process value and its transformation according to the sensor type.
  • Displaying the process values and configuration parameters on two 4-digit LED displays
  • Adjusting measured parameters and fixing errors of the converters• Displaying measurement results on a 4-digit LED screen
  • Creating an alarm signal in case of converters’ failure, displaying cause on the LED-screen and sending alarm message to external device if necessary
  • Creating signals for controlling external actuating mechanisms and devices according to preset instructions for adjustment
  • Displaying preset adjustment instructions on a LED screen

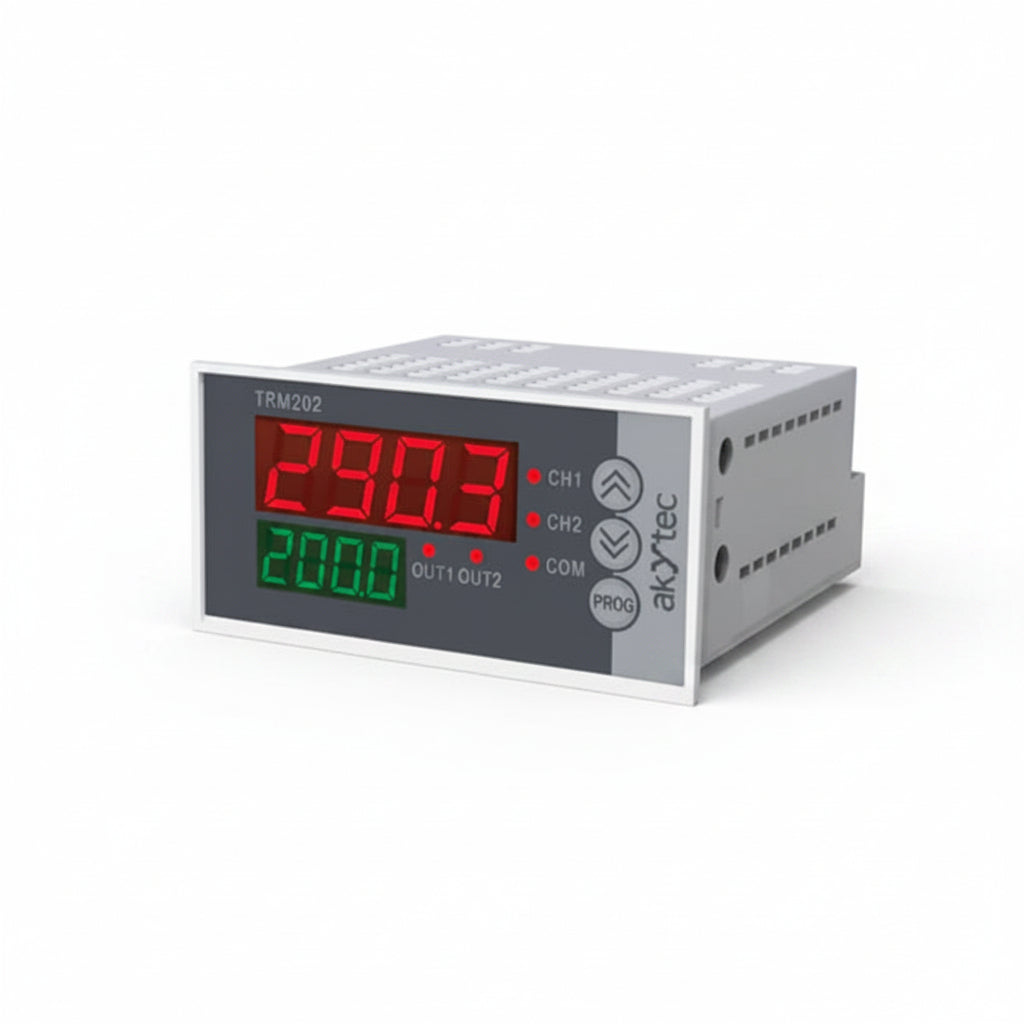

    TRM202 is a 2-channel process controller available in two enclosures: for wall or for panel mounting. Beside the on-off control, the TRM202 can also implement proportional control. This controller has two analog inputs and two outputs on board. The inputs are configurable and can be set for standard current/voltage signals (0-1 V, 4-20 mA, etc.) or for different standard TC/RTD signals, what allows this device to measure, display and control different physical process variables such as pressure, temperature, humidity, etc.
  • The optional outputs (relay, 4-20 mA) and RS485 interface provide particular flexibility when using this controller for creating automatic control and regulation systems of various processes in different areas of industry, agriculture, and utilities.
