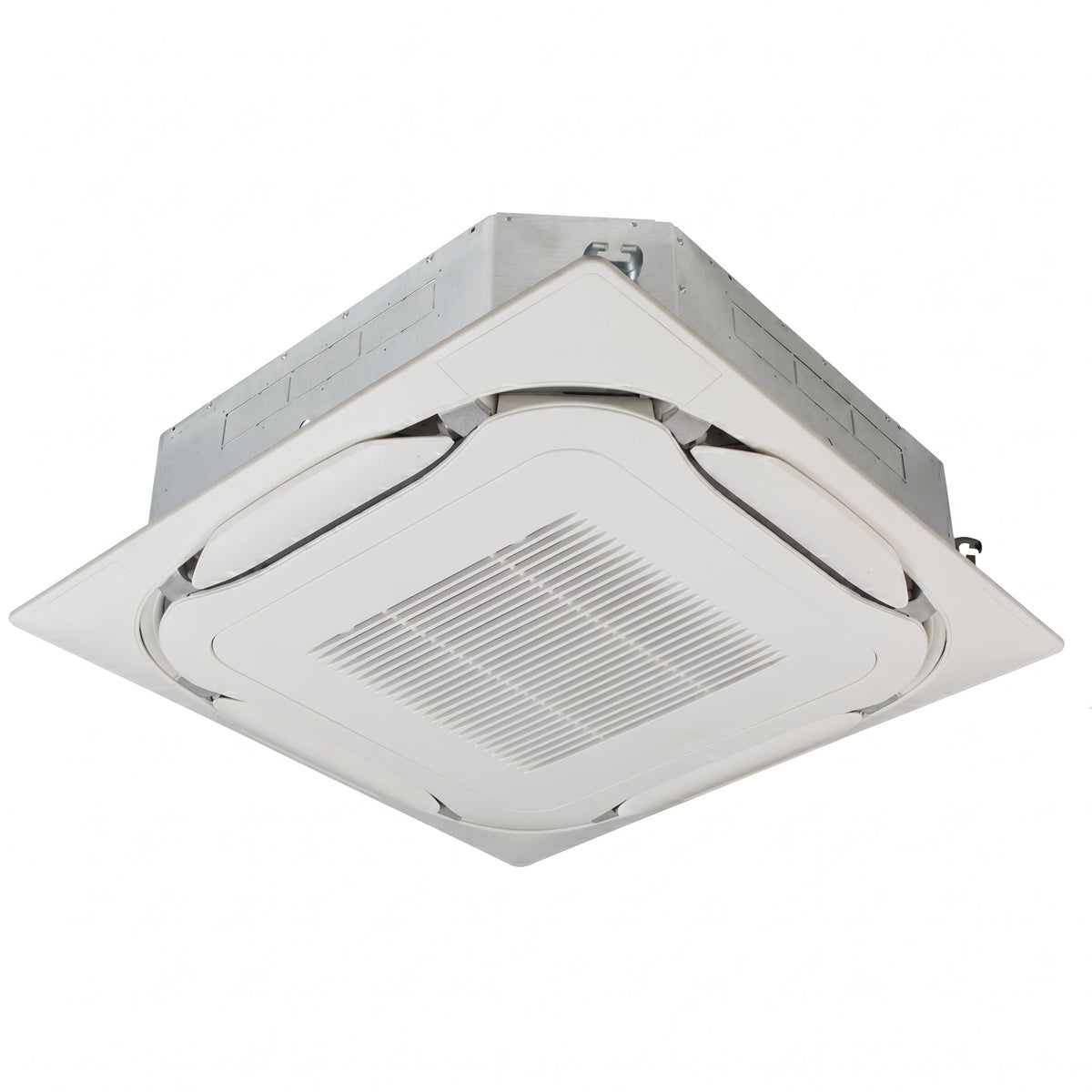

Daikin Cassette Splits for VRV Systems 1.0 Ton 3.6 kW 1.3 HP 12,000 Btu/h FXFSQ32ARV1 White

Key features

The Daikin FXFSQ32ARV1 is a high-performance VRV ceiling mounted cassette indoor unit designed to deliver comfortable and even air conditioning through its advanced 360° airflow system. It uses circulation airflow, individual airflow control, and direct airflow to distribute air throughout the room, helping reduce uneven temperatures and cold air pockets...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

The Daikin FXFSQ32ARV1 is a high-performance VRV ceiling mounted cassette indoor unit designed to deliver comfortable and even air conditioning through its advanced 360° airflow system. It uses circulation airflow, individual airflow control, and direct airflow to distribute air throughout the room, helping reduce uneven temperatures and cold air pockets at floor level. ❄️

Key Features

Feature Description
Brand Daikin
Model FXFSQ32ARV1
Series FXFSQ-ARV1
Product Type VRV cassette indoor unit
Installation Type Ceiling mounted cassette round flow
Cooling Capacity 3.6 kW / 12,300 Btu/h
Heating Capacity 4.0 kW / 13,600 Btu/h
Airflow System 360° airflow / all-round flow
Main Technology Circulation airflow and individual airflow setting
Drain Pump Standard drain pump with 850 mm lift
Application Offices, shops, restaurants, meeting rooms, showrooms, and commercial interiors

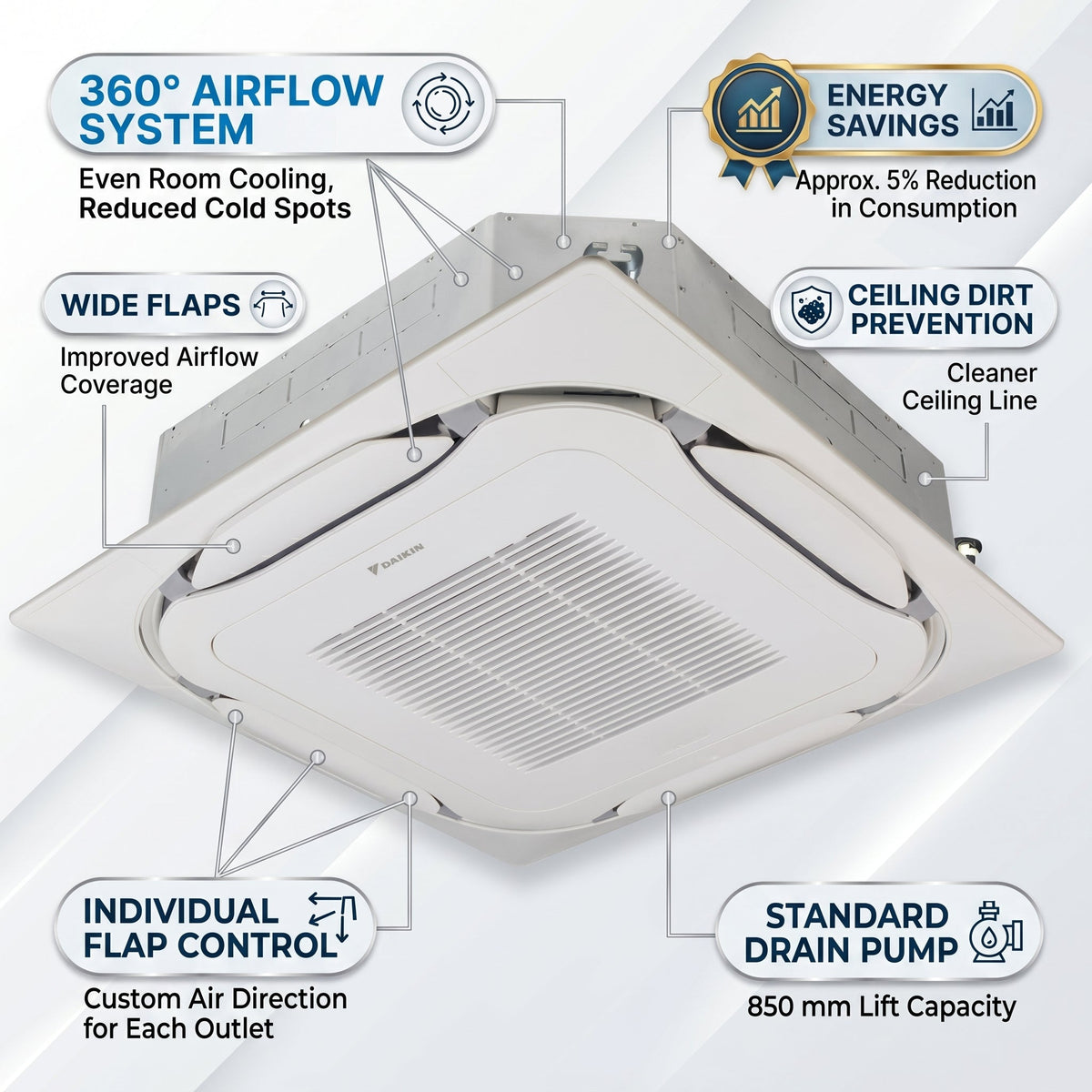

Product Features

Feature Details
360° Airflow Distribution Provides all-round airflow to improve temperature distribution and create a comfortable indoor environment.
Circulation Airflow Straight, horizontal, and strong airflow travels across the room, reaches the walls, and falls toward the floor for full-room comfort.
Individual Airflow Setting Airflow direction can be adjusted individually for each discharge outlet to suit room layout and occupant position.
Direct Airflow Control Helps direct airflow according to seating areas, working zones, windows, and comfort requirements.
New Wide Flaps Wide flaps increase airflow straightness and help improve coverage compared with conventional cassette models.
Ceiling Dirt Reduction New wide flap construction helps direct airflow downward to reduce ceiling dirt and grime.
Optimized Horizontal Airflow Maintains a more horizontal airflow route even when the flap is raised.
Two-Way Flow Option Selected outlets can be controlled to create stronger airflow in required directions.
Improved Air Velocity Two-way flow helps increase air velocity for powerful and effective air distribution.
Energy Saving Comfort Helps save energy by reducing uneven room temperature and improving comfort across the room.
Room Layout Adaptability Suitable for different layouts in offices, shops, restaurants, and commercial interiors.
Standard Drain Pump Built-in drain pump supports condensate lift up to 850 mm for flexible ceiling installation.

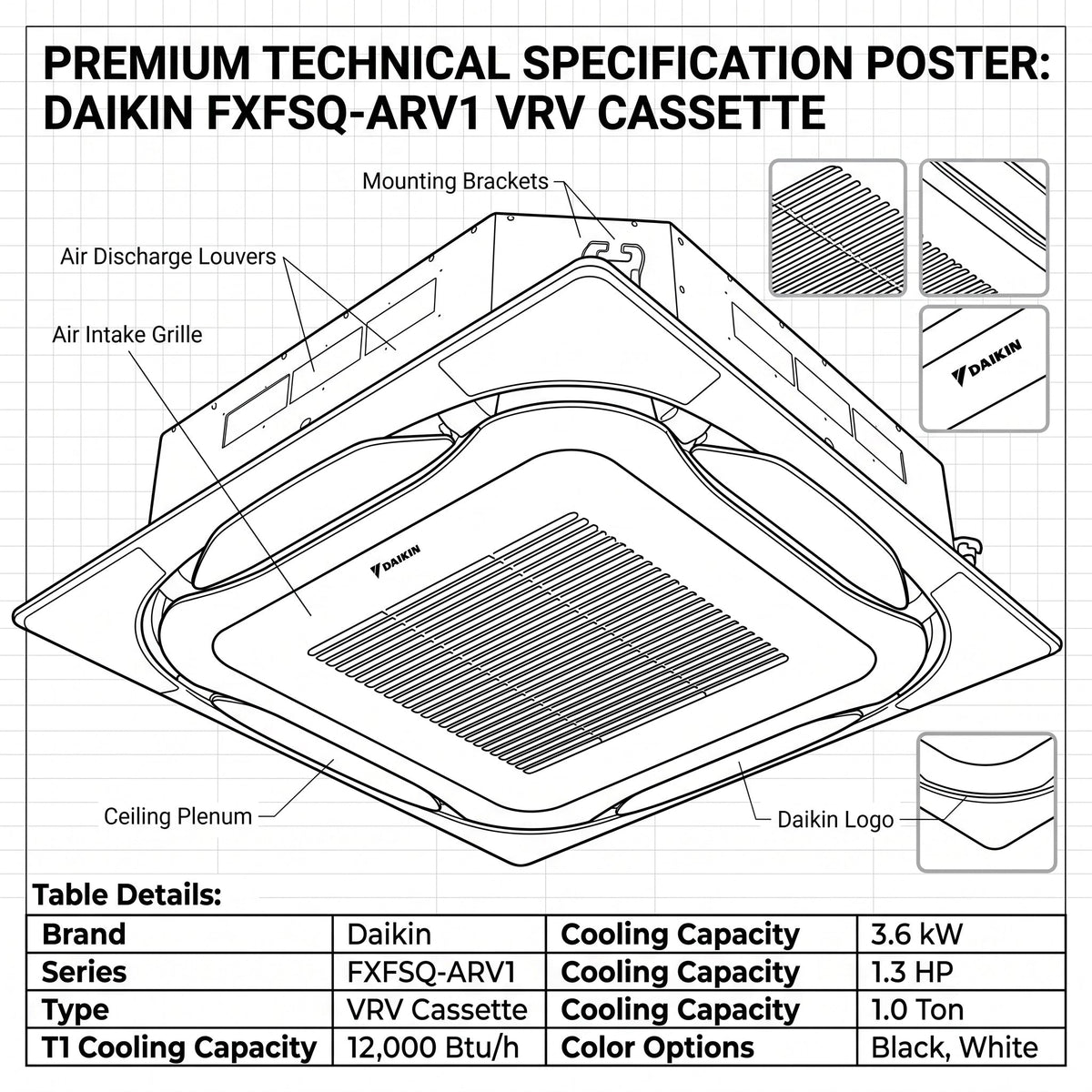

Technical Parameters

Specification Details
Model FXFSQ32ARV1
Power Supply 1-phase, 220–240V, 50/60 Hz
Cooling Capacity 12,300 Btu/h / 3.6 kW
Heating Capacity 13,600 Btu/h / 4.0 kW
Casing Galvanized steel plate
Airflow Rate High / Medium / Low 17 / 12.5 / 11 m³/min
Airflow Rate High / Medium / Low 600 / 441 / 388 cfm
Sound Level High / Medium / Low 35 / 29 / 27 dB(A)
Dimensions H × W × D 256 × 840 × 840 mm
Machine Weight 19 kg
Liquid Pipe Connection 6.4 mm flare
Gas Pipe Connection 12.7 mm flare
Drain Connection Dia. 26 hole
Standard Panel Model BYCQ125EAF9, Fresh White
Panel Dimensions H × W × D 50 × 950 × 950 mm
Panel Weight 5.5 kg
Drain Pump Lift 850 mm
Installation Type Ceiling mounted cassette round flow

Application Scope

Application Area Details
Offices Helps provide balanced airflow for desks, workstations, meeting areas, and zones near windows.
Restaurants Suitable for dining spaces where even comfort is required across different seating areas.
Retail Shops Provides comfortable cooling for customer areas, counters, and product display spaces.
Showrooms Helps maintain consistent comfort across open commercial interiors.
Meeting Rooms Individual airflow settings help reduce direct airflow on occupants.
Commercial Interiors Ideal for ceiling cassette VRV applications requiring flexible and even air distribution.

Main Benefits

  • Efficient VRV ceiling mounted cassette indoor unit
  • Cooling capacity of 3.6 kW / 12,300 Btu/h
  • Heating capacity of 4.0 kW / 13,600 Btu/h
  • 360° all-round airflow for improved room comfort
  • Circulation airflow helps cool the entire room evenly
  • Individual airflow control for each outlet
  • New wide flap design improves airflow coverage
  • Helps reduce ceiling dirt and grime
  • Built-in drain pump with 850 mm lift
  • Suitable for offices, restaurants, shops, showrooms, and commercial spaces ⚙️
