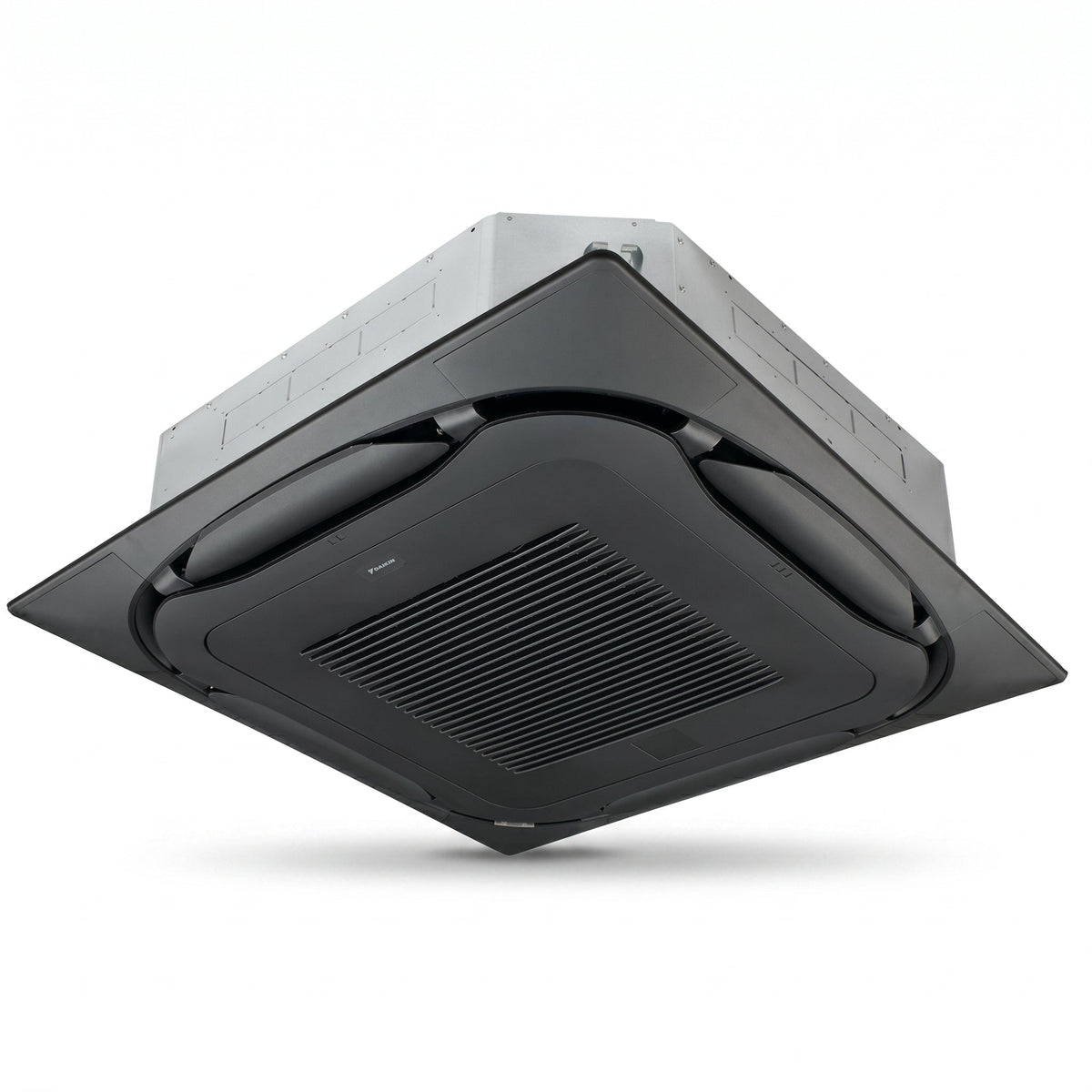

Daikin Cassette Splits for VRV Systems 4.0 Ton 14.0 kW 5.3 HP 48,000 Btu/h FXFQ125B Black

Key features

The Daikin FXFQ125B is a high-performance VRV round flow cassette indoor unit designed to deliver 360° air discharge for efficient cooling, heating, and comfort. It provides wide air distribution, flexible airflow control, and quiet operation, making it suitable for offices, shops, restaurants, showrooms, meeting rooms, hotels, and commercial interiors. ❄️...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

The Daikin FXFQ125B is a high-performance VRV round flow cassette indoor unit designed to deliver 360° air discharge for efficient cooling, heating, and comfort. It provides wide air distribution, flexible airflow control, and quiet operation, making it suitable for offices, shops, restaurants, showrooms, meeting rooms, hotels, and commercial interiors. ❄️

Key Features

Feature Description
Brand Daikin
Model FXFQ125B
Series FXFQ-B
Product Type VRV round flow cassette indoor unit
Installation Type Ceiling mounted cassette
Cooling Capacity 14.00 kW
Heating Capacity 16.00 kW
Airflow System 360° air discharge
Panel Options White, full white, black, auto-cleaning, and designer panels
Drain Pump Standard drain pump with 675 mm lift
Refrigerant R-410A
Application Offices, restaurants, shops, showrooms, hotels, and commercial spaces

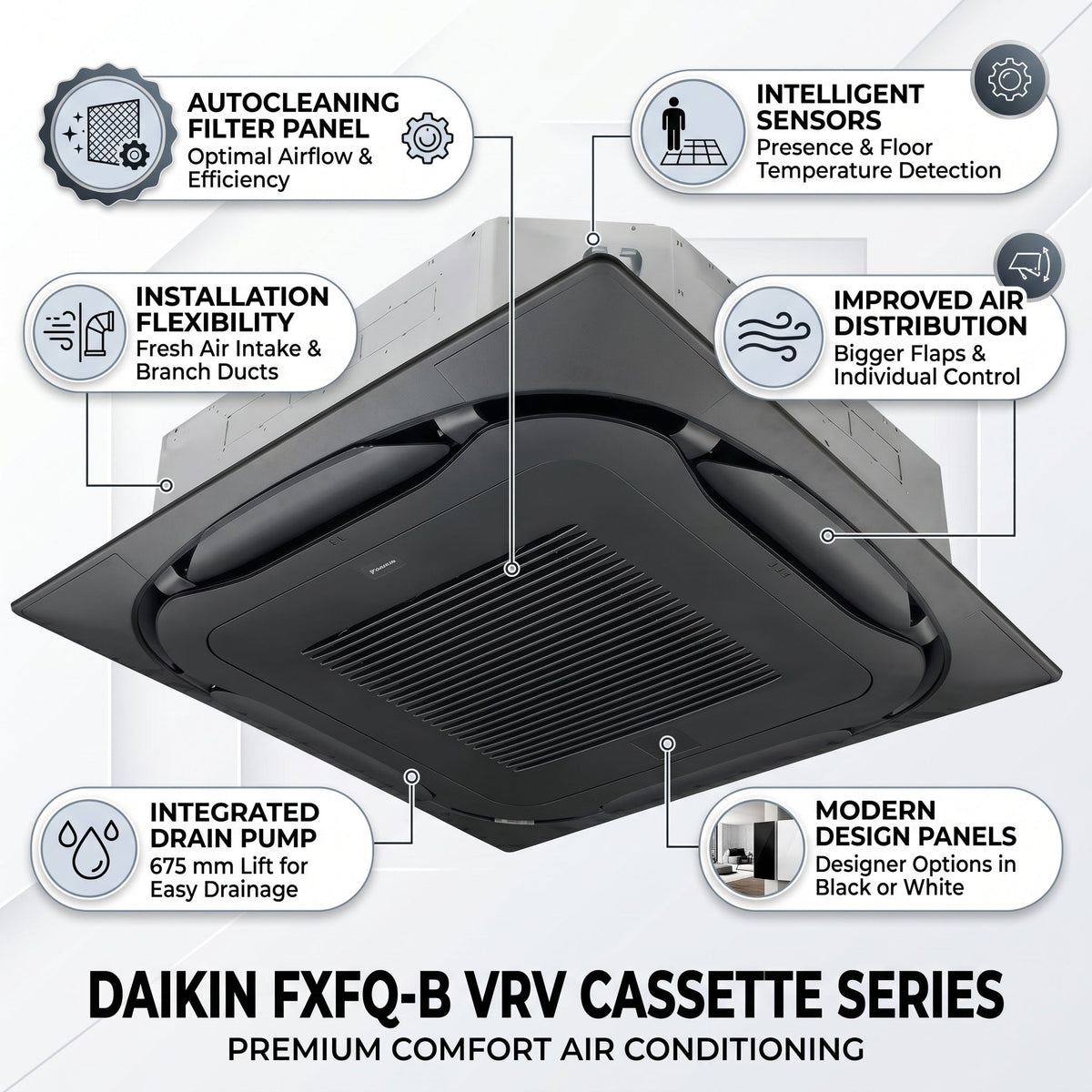

Product Features

Feature Details
360° Air Discharge Provides all-round airflow for optimum efficiency and comfortable room air distribution.
Automatic Filter Cleaning Option Optional auto-cleaning panel helps maintain efficiency, comfort, and lower maintenance requirements.
Optional Intelligent Sensors Presence and floor sensors help improve energy efficiency and comfort by detecting people and floor temperature.
Wide Decoration Panel Choice Available with standard panels, auto-cleaning panels, designer panels, white panels, full white panels, and black panels.
Bigger Flaps & Unique Swing Pattern Helps improve equal air distribution across the room.
Individual Flap Control Each flap can be adjusted to suit room layout without changing the unit location.
Low Installation Height Compact cassette height supports easier installation in ceiling spaces.
Optional Fresh Air Intake Allows fresh air connection to support improved indoor air quality.
Branch Duct Discharge Helps optimize air distribution in irregular-shaped rooms or supply air to small adjacent rooms.
Standard Drain Pump Built-in drain pump with 675 mm lift improves installation flexibility and speed.
Ceiling Soiling Prevention Helps reduce ceiling dirt by improving airflow direction and distribution.
Vertical Auto Swing Distributes air evenly around the room for better comfort.
Fan Only Operation Can operate as a fan without cooling or heating when only air circulation is needed.
Dry Programme Helps reduce humidity without major room temperature change.
Auto Restart & Self Diagnosis Automatically restarts after power failure and supports easier fault diagnosis.
Remote Control Options Compatible with infrared, wired, and centralized control options.

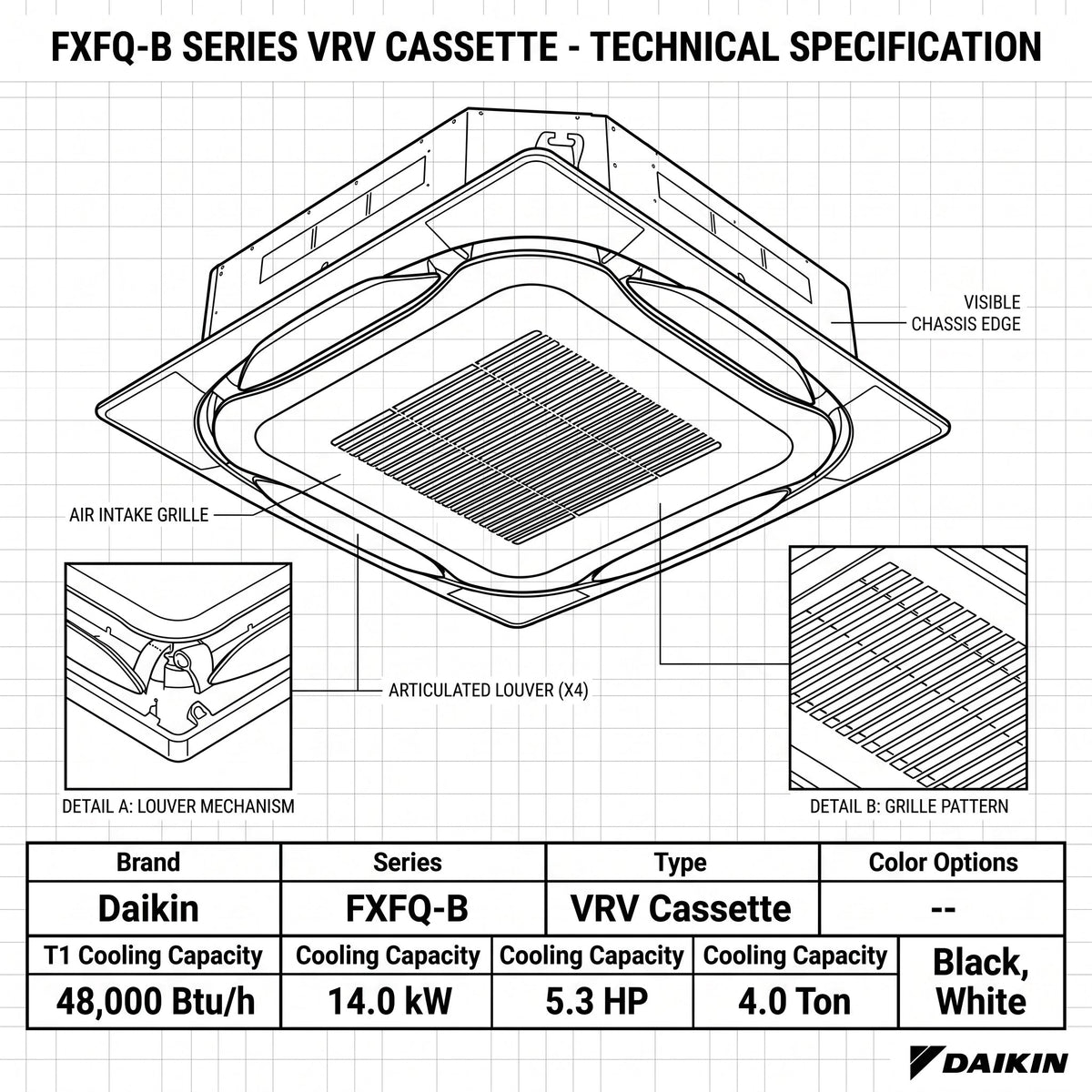

Technical Parameters

Specification Details
Model FXFQ125B
Power Supply 1-phase, 220–240V / 220V, 50/60 Hz
Cooling Capacity 14.00 kW
Heating Capacity 16.00 kW
Power Input Cooling 0.190 kW
Power Input Heating 0.190 kW
Unit Dimensions H × W × D 288 × 840 × 840 mm
Unit Weight 26.0 kg
Casing Galvanized steel plate
Airflow Rate Cooling High / Medium / Low 31.6 / 26.0 / 19.8 m³/min
Airflow Rate Heating High / Medium / Low 30.3 / 24.9 / 18.9 m³/min
Air Filter Type Resin net
Sound Power Level Cooling 61.0 dB(A)
Sound Pressure Level Cooling High / Medium / Low 45.0 / 40.0 / 36.0 dB(A)
Sound Pressure Level Heating High / Medium / Low 45.0 / 40.0 / 36.0 dB(A)
Refrigerant Type / GWP R-410A / 2087.5
Liquid Pipe Connection OD 9.52 mm
Gas Pipe Connection OD 15.9 mm
Drain Connection VP25, O.D. 32 mm / I.D. 25 mm
Standard Panel Options BYCQ140E, BYCQ140EW, BYCQ140EB
Auto Cleaning Panel Options BYCQ140EGF / BYCQ140EGFB
Designer Panel Options BYCQ140EP / BYCQ140EPB
Standard Panel Dimensions H × W × D 50 × 950 × 950 mm
Auto Cleaning Panel Dimensions H × W × D 130 × 950 × 950 mm
Designer Panel Dimensions H × W × D 50 × 950 × 950 mm
Standard Panel Weight 5.4 kg
Auto Cleaning Panel Weight 10.3 kg
Designer Panel Weight 5.4 kg
Drain Pump Lift 675 mm

Application Scope

Application Area Details
Offices Suitable for open offices, meeting rooms, private cabins, and work areas requiring even airflow.
Restaurants Provides comfortable 360° air distribution across dining spaces and seating zones.
Retail Shops Ideal for customer areas, display spaces, boutiques, and showrooms.
Hotels Suitable for guest areas, lobbies, conference rooms, and hospitality interiors.
Commercial Interiors Works well in spaces requiring ceiling cassette installation with flexible airflow control.
Irregular Room Layouts Branch duct discharge and individual flap control help improve air distribution in complex layouts.

Main Benefits

  • Powerful VRV round flow cassette indoor unit
  • Cooling capacity of 14.00 kW
  • Heating capacity of 16.00 kW
  • 360° air discharge for efficient comfort
  • Optional auto-cleaning panel for lower maintenance
  • Optional intelligent sensors for improved comfort and energy efficiency
  • Wide choice of decoration panels in white and black
  • Individual flap control for flexible airflow direction
  • Optional fresh air intake and branch duct discharge
  • Built-in drain pump with 675 mm lift
  • Suitable for offices, restaurants, shops, hotels, and commercial interiors ⚙️
