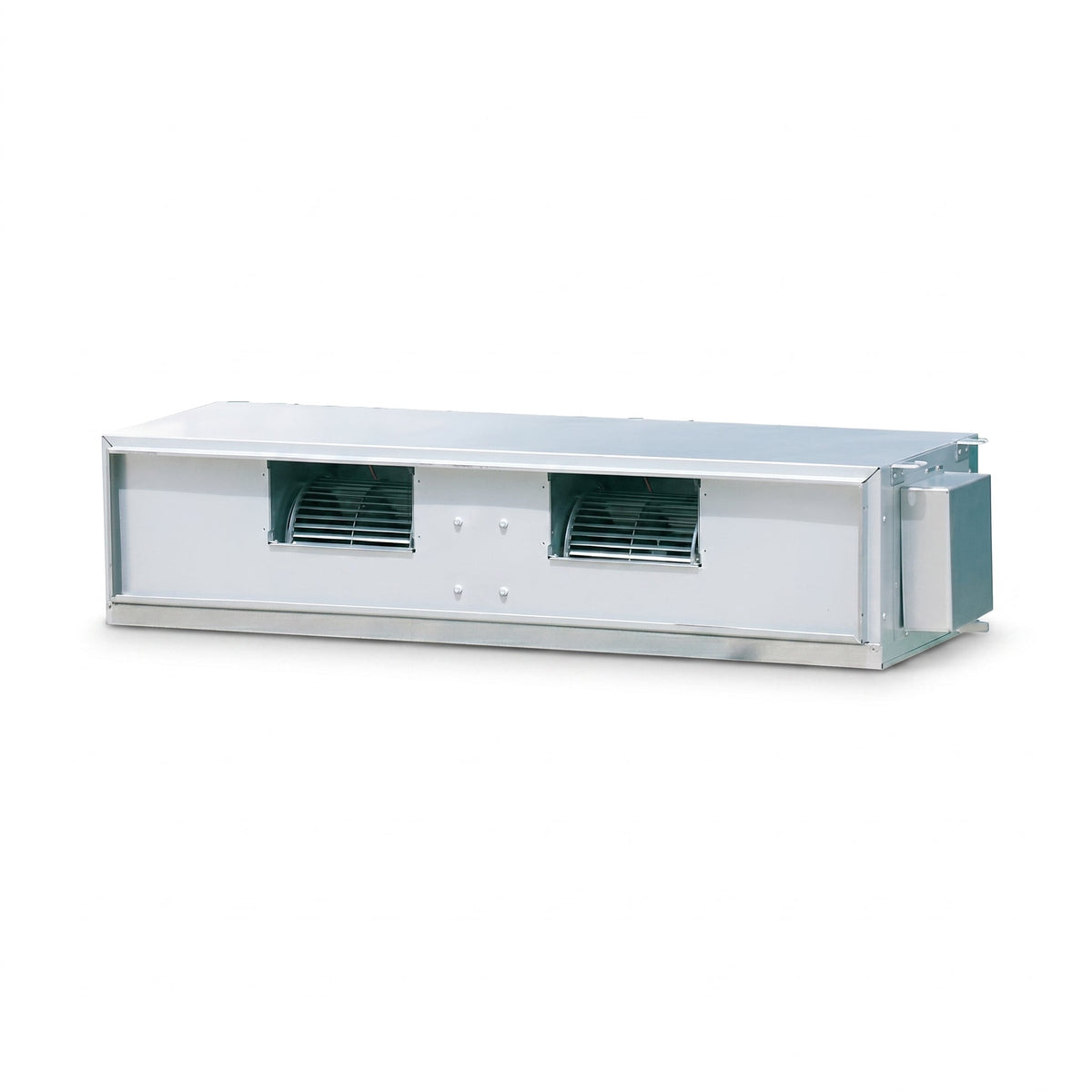

Daikin Ducted Split Air Conditioner 2.0 Ton 7.0 kW 2.6 HP 24,000 Btu/h FDMRN25AV1KU / RR25AV1KU

Key features

The Daikin FDMRN25AV1KU / RR25AV1KU is designed to provide powerful, quiet, and hidden cooling through a concealed ceiling installation. It is suitable for homes, offices, hotels, and commercial spaces where a clean interior look and reliable cooling comfort are required. Key Features Feature Details Brand Daikin Series FDMRN Series Indoor...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

The Daikin FDMRN25AV1KU / RR25AV1KU is designed to provide powerful, quiet, and hidden cooling through a concealed ceiling installation. It is suitable for homes, offices, hotels, and commercial spaces where a clean interior look and reliable cooling comfort are required.

Key Features

Feature Details
Brand Daikin
Series FDMRN Series
Indoor Model FDMRN25AV1KU
Outdoor Model RR25AV1KU
Product Type Concealed ceiling / ducted AC
Cooling Type Cooling only
Refrigerant R-410A
Installation Type Concealed ceiling installation
Design Style Hidden / invisible indoor unit design
Main Application Villas, apartments, offices, hotels, and commercial interiors

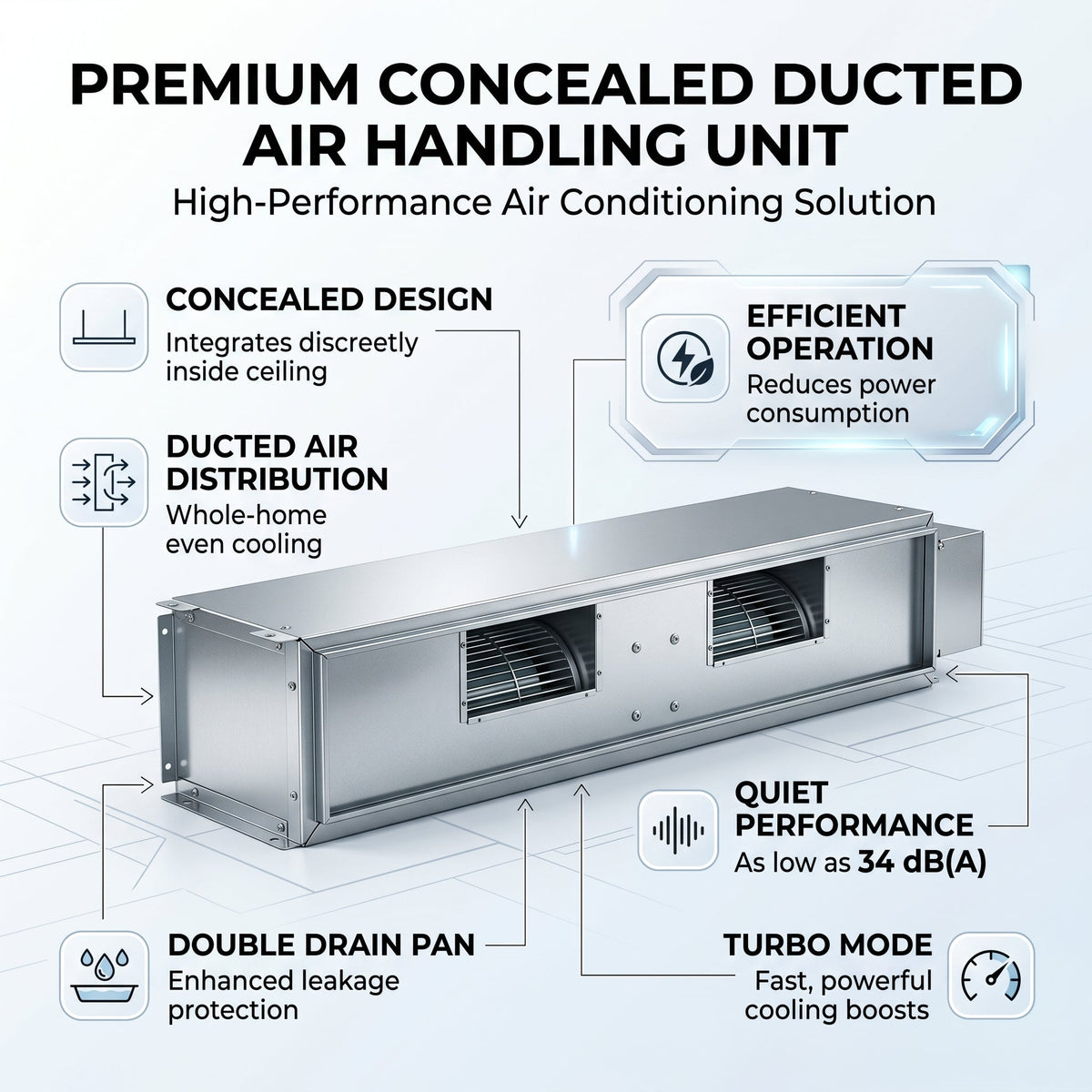

Product Features

Feature Description
Concealed Ceiling Design Designed to be installed inside the ceiling, giving the room a clean and modern look without a visible indoor unit.
R-410A Refrigerant Uses R-410A refrigerant with zero ozone depletion potential.
Powerful Cooling Built to cool rooms quickly and efficiently, even when outdoor temperatures are high.
Energy Saving Operation Efficient system performance helps reduce electricity consumption.
Optimal Cooling Comfort Supports Turbo Mode, Sleep Mode, and Dry Mode for improved comfort.
Whisper Quiet Operation Indoor unit operates quietly for a more peaceful room environment.
Long Airflow Helps distribute cool air across wider and larger indoor spaces.
High Design Flexibility Compact design with adjustable ESP allows flexible duct installation.
Easy Installation Outdoor unit can be roof mounted or placed against an outside wall.
Double Protection Drainage System Reinforced drain pan helps protect against water leakage.
Anti-Corrosion Protection Outdoor components are protected for improved durability.
Auto Random Restart Restarts automatically after power failure and helps reduce power surge risk.

Technical Parameters

Specification Details
Indoor Model FDMRN25AV1KU
Outdoor Model RR25AV1KU
Power Supply 230V / 1Ph / 50Hz
Cooling Capacity T1 23,500 Btu/h / 6.89 kW
Cooling Capacity T3 20,500 Btu/h / 6.00 kW
EER T1 11.73 Btu/h/W
EER T3 8.73 Btu/h/W
ESP Range High Fan 40 / 50 Pa
Indoor Airflow 800 / 641 / 516 CFM
Indoor Sound Level 38 / 35 / 32 dB(A)
Indoor Dimensions 378 × 1,030 × 541 mm
Refrigerant Type R-410A
Compressor Type Rotary
Total Piping Length 50 m
Vertical Piping Length 30 m
Operating Temperature Range 19°C – 54°C

Application Scope

Application Area Details
Villas & Apartments Ideal for concealed cooling in bedrooms, living rooms, and lounges.
Hotels Suitable for guest rooms and suites where quiet hidden cooling is preferred.
Offices Provides clean interior design with ducted air distribution.
Retail Shops Helps maintain comfortable cooling without affecting store aesthetics.
Commercial Interiors Suitable for spaces requiring flexible ducted AC installation.

Main Benefits

  • Hidden ceiling-mounted cooling design
  • Strong 23,500 Btu/h cooling capacity
  • R-410A refrigerant with zero ozone depletion potential
  • Quiet indoor operation
  • Long airflow for better room coverage
  • Energy-saving cooling performance
  • Flexible duct installation with adjustable ESP
  • Double drain pan protection
  • Anti-corrosion protection for longer life
  • Auto random restart after power failure
