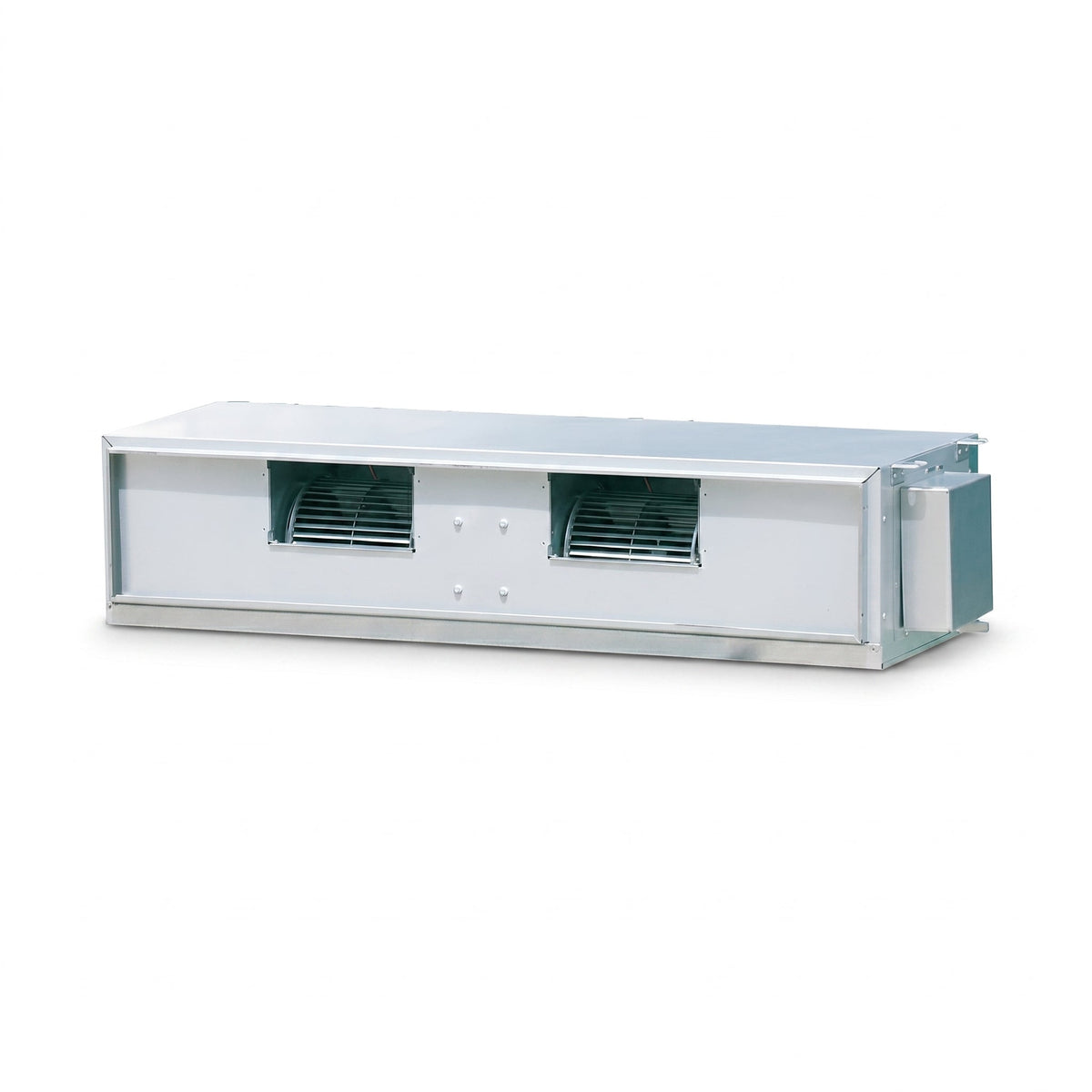

Daikin Ducted Split Air Conditioner 2.5 Ton 8.8 kW 3.3 HP 30,000 Btu/h FDMRN30AV1KU / RR30AV1KU

Key features

The Daikin FDMRN30AV1KU / RR30AV1KU is designed to deliver powerful, quiet, and discreet cooling through a concealed ceiling installation. It is ideal for spaces where users want strong air conditioning performance without a visible wall-mounted indoor unit. Key Features Feature Details Brand Daikin Series FDMRN Series Indoor Model FDMRN30AV1KU Outdoor...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

The Daikin FDMRN30AV1KU / RR30AV1KU is designed to deliver powerful, quiet, and discreet cooling through a concealed ceiling installation. It is ideal for spaces where users want strong air conditioning performance without a visible wall-mounted indoor unit.

Key Features

Feature Details
Brand Daikin
Series FDMRN Series
Indoor Model FDMRN30AV1KU
Outdoor Model RR30AV1KU
Product Type Concealed ceiling / ducted AC
Cooling Type Cooling only
Refrigerant R-410A
Compressor Type Rotary compressor
Installation Type Concealed ceiling installation
Main Application Villas, apartments, offices, hotels, and commercial interiors
Main Benefit Hidden cooling with strong performance and flexible duct design

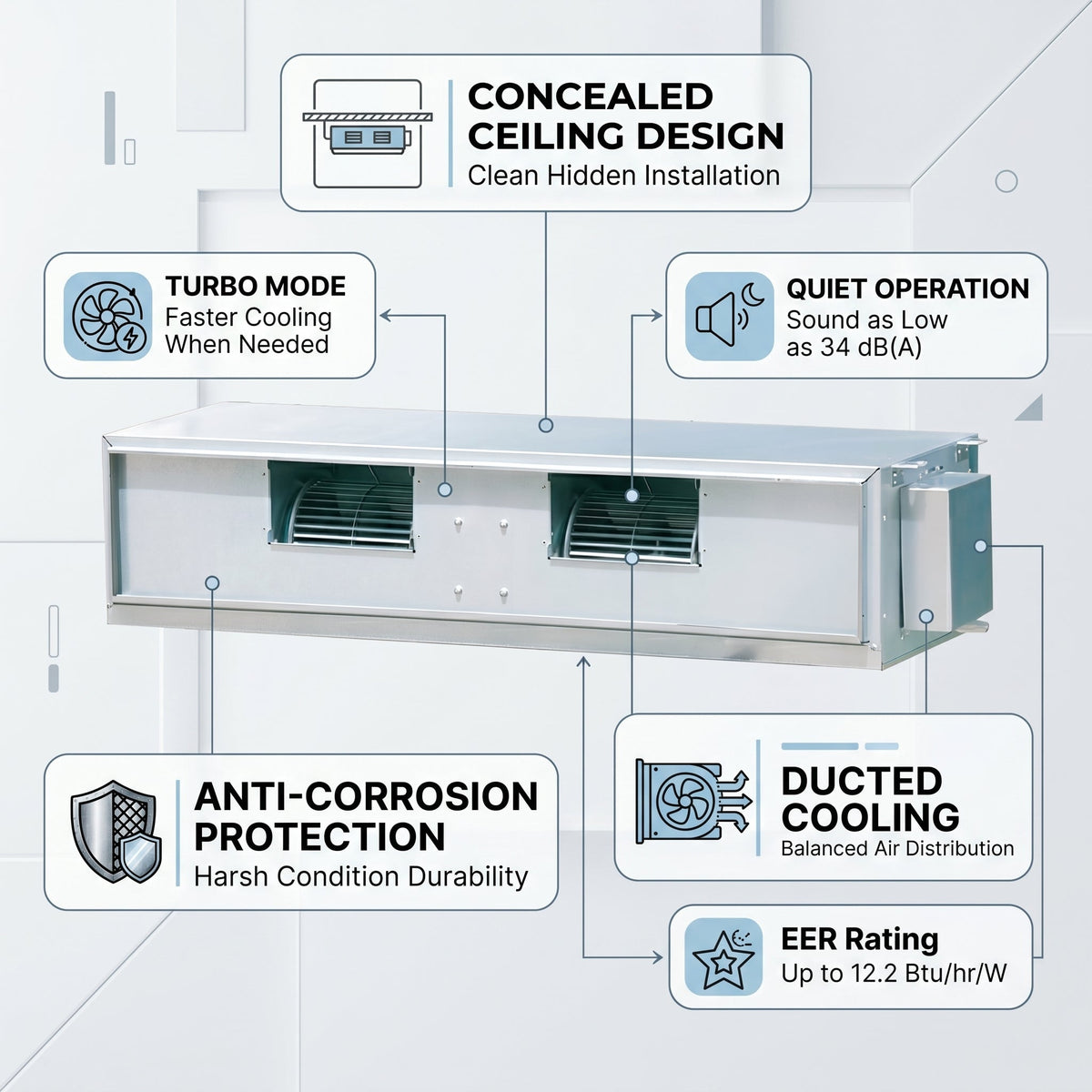

Product Features

Feature Description
Concealed Ceiling Design Designed to be hidden inside the ceiling for a clean and elegant indoor appearance.
R-410A Refrigerant Uses R-410A refrigerant with zero ozone depletion potential.
Powerful Cooling Provides reliable cooling performance even when outdoor temperature is very high.
Energy Saving Operation Efficient cooling performance helps lower electricity consumption.
Optimal Cooling Comfort Includes Turbo Mode, Sleep Mode, and Dry Mode for better comfort control.
Whisper Quiet Operation Indoor sound level can be reduced for quiet and comfortable operation.
Long Airflow Helps distribute cool air across larger rooms and wider spaces.
High Design Flexibility Wide external static pressure range supports flexible duct layout.
Easy Installation Outdoor unit can be roof mounted or placed against an outside wall.
Double Protection Drainage System Reinforced drain pan protection helps reduce water leakage risk.
Standard Anti-Corrosion Protection Protects key outdoor components for longer service life.
Auto Random Restart Automatically restarts after a power failure while helping prevent power surge.

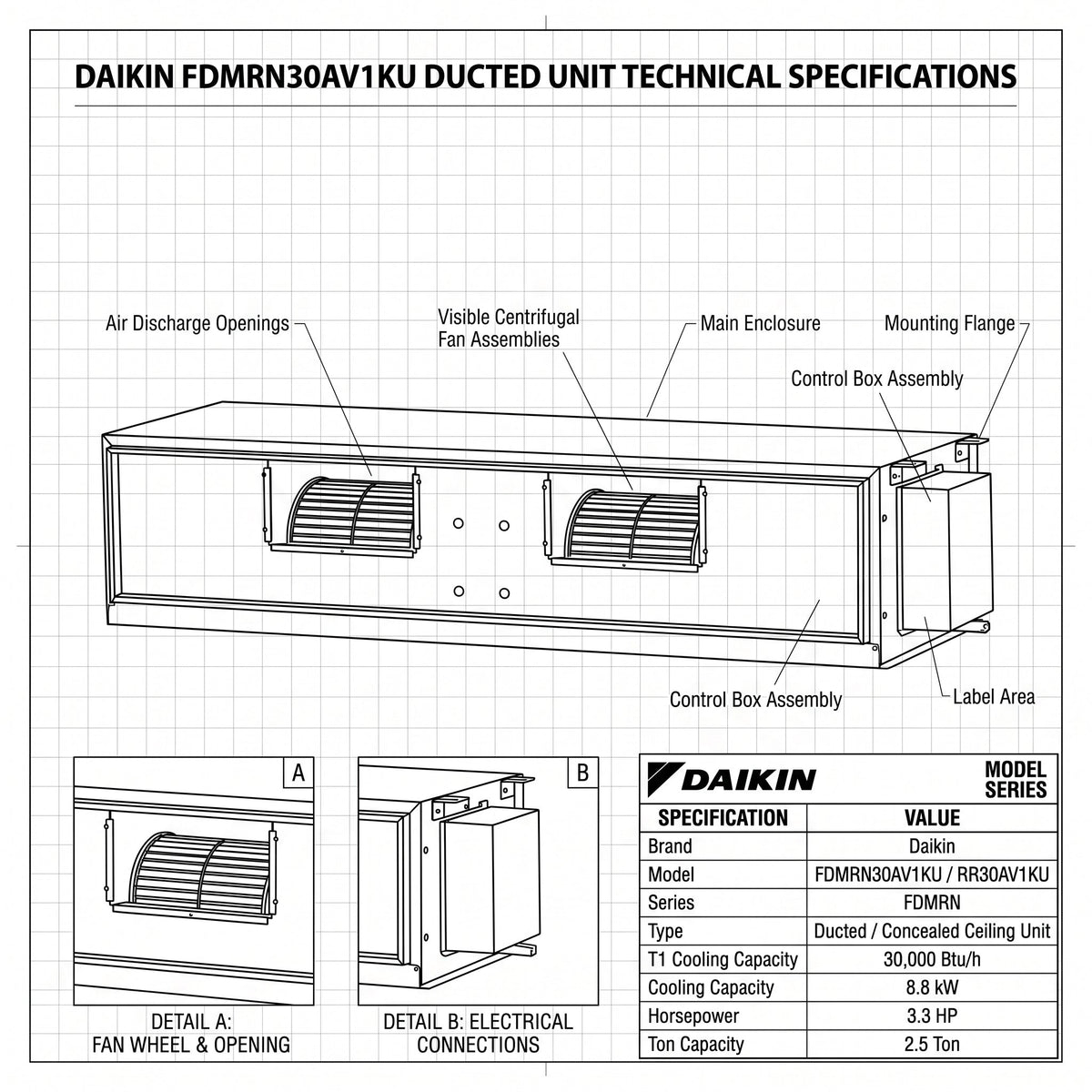

Technical Parameters

Specification Details
Indoor Model FDMRN30AV1KU
Outdoor Model RR30AV1KU
Power Supply 230V / 1Ph / 50Hz
Cooling Capacity T1 30,000 Btu/h / 8.79 kW
Cooling Capacity T3 27,000 Btu/h / 7.91 kW
EER T1 11.91 Btu/h/W
EER T3 8.83 Btu/h/W
ESP Range High Fan 40 / 50 Pa
Indoor Airflow 1,496 / 1,378 / 1,260 CFM
Indoor Sound Level 38 / 35 / 32 dB(A)
Indoor Dimensions 378 × 1,030 × 541 mm
Refrigerant Type R-410A
Compressor Type Rotary
Total Piping Length 50 m
Vertical Piping Length 30 m
Operating Temperature Range 19°C – 54°C

Application Scope

Application Area Details
Villas Suitable for hidden ducted cooling in bedrooms, lounges, and living areas
Apartments Ideal for modern interiors where visible AC units are not preferred
Hotels Provides discreet comfort cooling for guest rooms and suites
Offices Supports professional interiors with concealed air distribution
Retail Spaces Helps maintain comfortable cooling without disturbing the interior design
Commercial Interiors Suitable for flexible ducted air conditioning layouts

Main Benefits

  • Discreet concealed ceiling design
  • Strong 30,000 Btu/h cooling capacity
  • R-410A refrigerant with zero ozone depletion potential
  • Quiet indoor operation for comfortable spaces
  • Long airflow for better cooling distribution
  • Energy-efficient performance
  • Flexible duct design with adjustable ESP
  • Double drain pan protection against leakage
  • Anti-corrosion protection for durability
  • Auto random restart after power failure
