Daikin Ducted Split Air Conditioner 3.0 Ton 10.6 kW 4.0 HP 36,000 Btu/h FDMRN36AV1KU / RR36AV1KU

Key features

The Daikin FDMRN36AV1KU / RR36AV1KU is designed to provide powerful, efficient, and discreet cooling for homes, offices, hotels, villas, and commercial spaces. The indoor unit is concealed inside the ceiling, giving the space a clean interior look while delivering comfortable ducted airflow. Key Features Feature Details Brand Daikin Series FDMRN...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

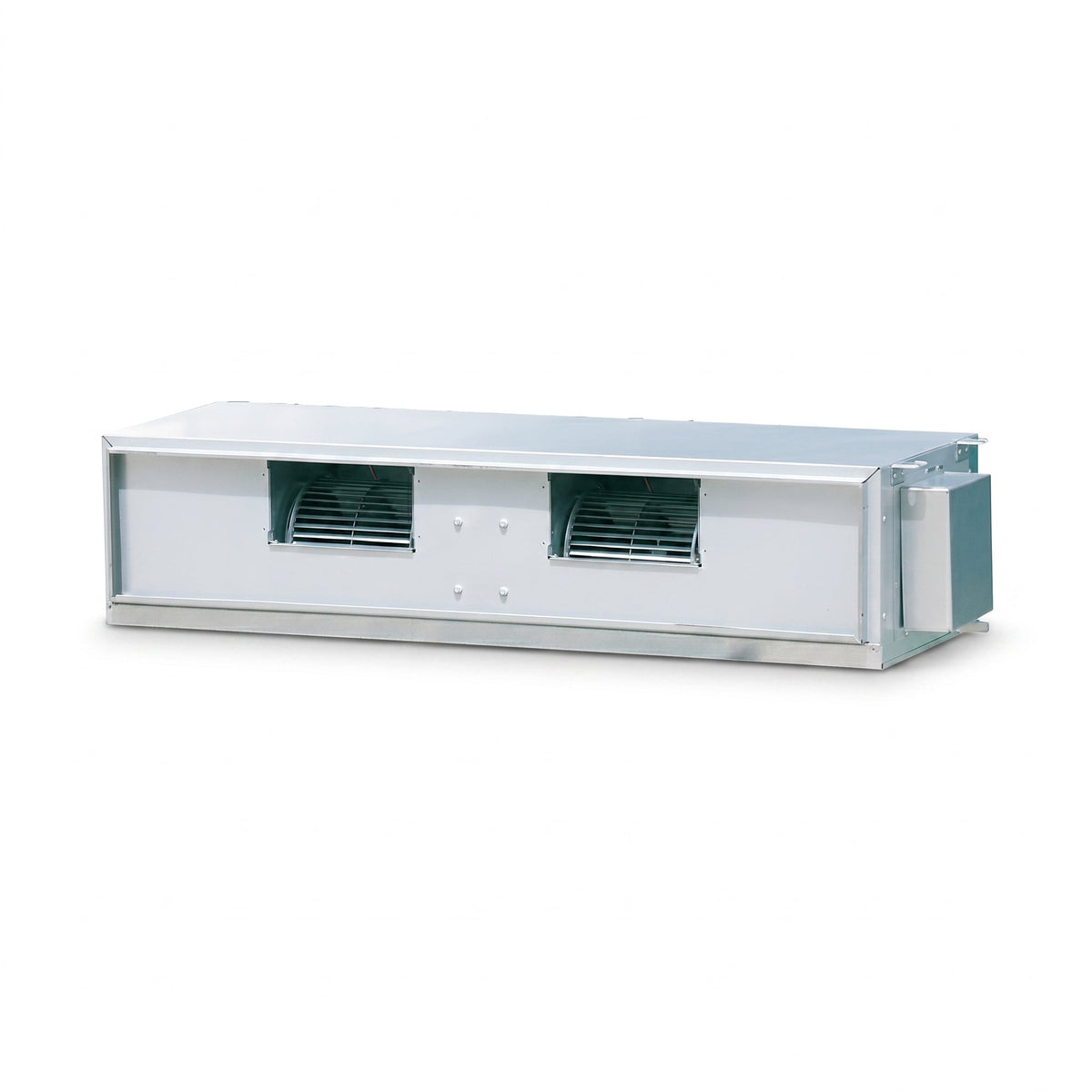

The Daikin FDMRN36AV1KU / RR36AV1KU is designed to provide powerful, efficient, and discreet cooling for homes, offices, hotels, villas, and commercial spaces. The indoor unit is concealed inside the ceiling, giving the space a clean interior look while delivering comfortable ducted airflow.

Key Features

Feature Details
Brand Daikin
Series FDMRN Series
Indoor Model FDMRN36AV1KU
Outdoor Model RR36AV1KU
Product Type Concealed ceiling / ducted AC
Cooling Type Cooling only
Refrigerant R-410A
Installation Type Concealed ceiling installation
Compressor Type Rotary compressor
Main Application Villas, offices, hotels, apartments, and commercial interiors
Main Benefit Invisible cooling with powerful and reliable performance

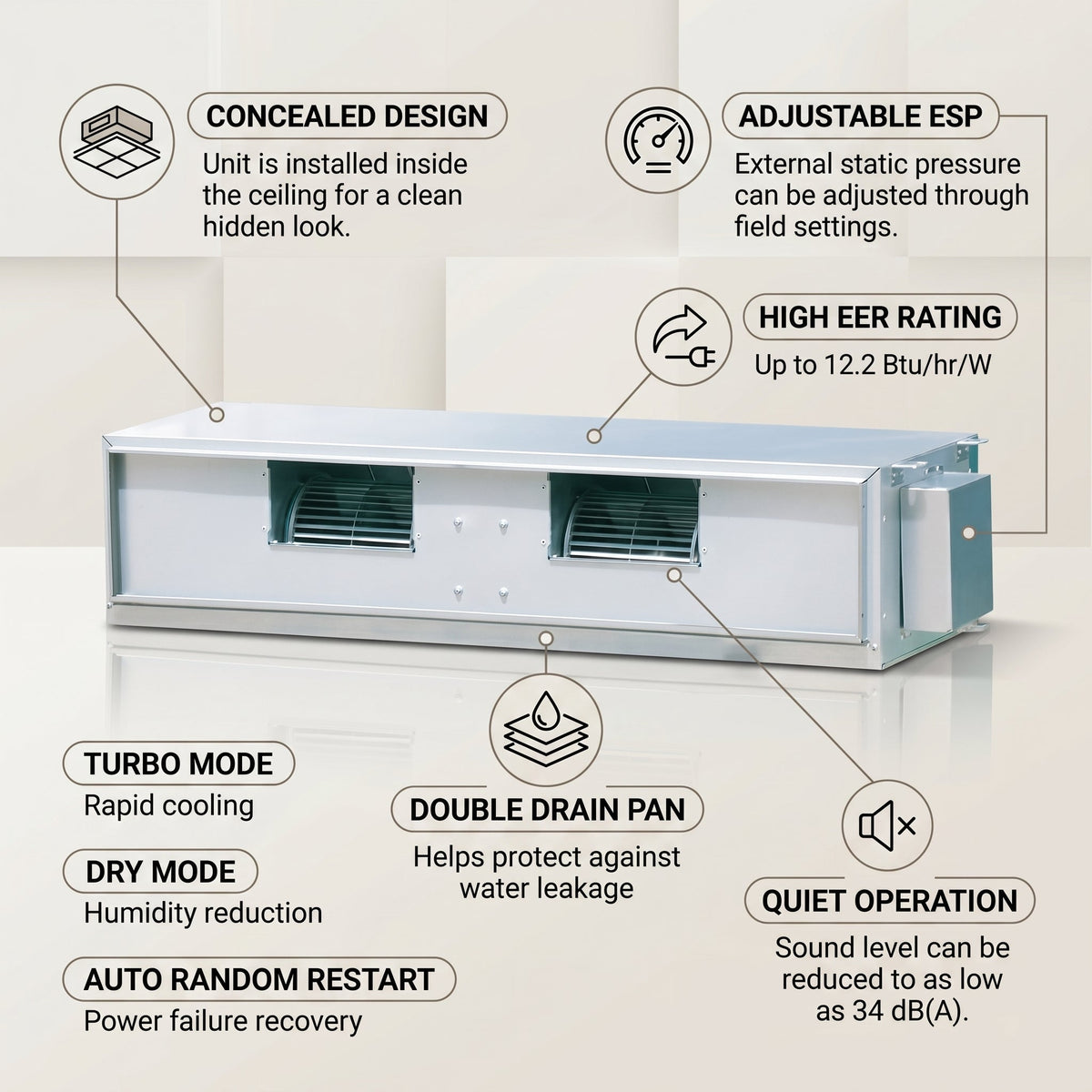

Product Features

Feature Description
Concealed Ceiling Design Hidden inside the ceiling for a clean and elegant interior appearance.
R-410A Refrigerant Uses R-410A refrigerant with zero ozone depletion potential.
Powerful Cooling Designed to cool rooms quickly, even when outdoor temperature is high.
Energy Saving Operation Efficient cooling performance helps reduce electricity consumption.
Optimal Cooling Comfort Includes Turbo Mode, Sleep Mode, and Dry Mode for better comfort control.
Whisper Quiet Operation Indoor operation is quiet, supporting peaceful comfort in bedrooms and offices.
High Design Flexibility Wide external static pressure range supports flexible duct design.
Easy Installation Outdoor unit can be roof mounted or installed against an outside wall.
Double Protection Drainage System Reinforced drain pan protection helps reduce water leakage risk.
Standard Anti-Corrosion Protection Protects key components from corrosion for longer product life.
Auto Random Restart Automatically restarts after power failure while helping prevent power surge.
Long Airflow Helps provide cooling comfort across wider and larger spaces.

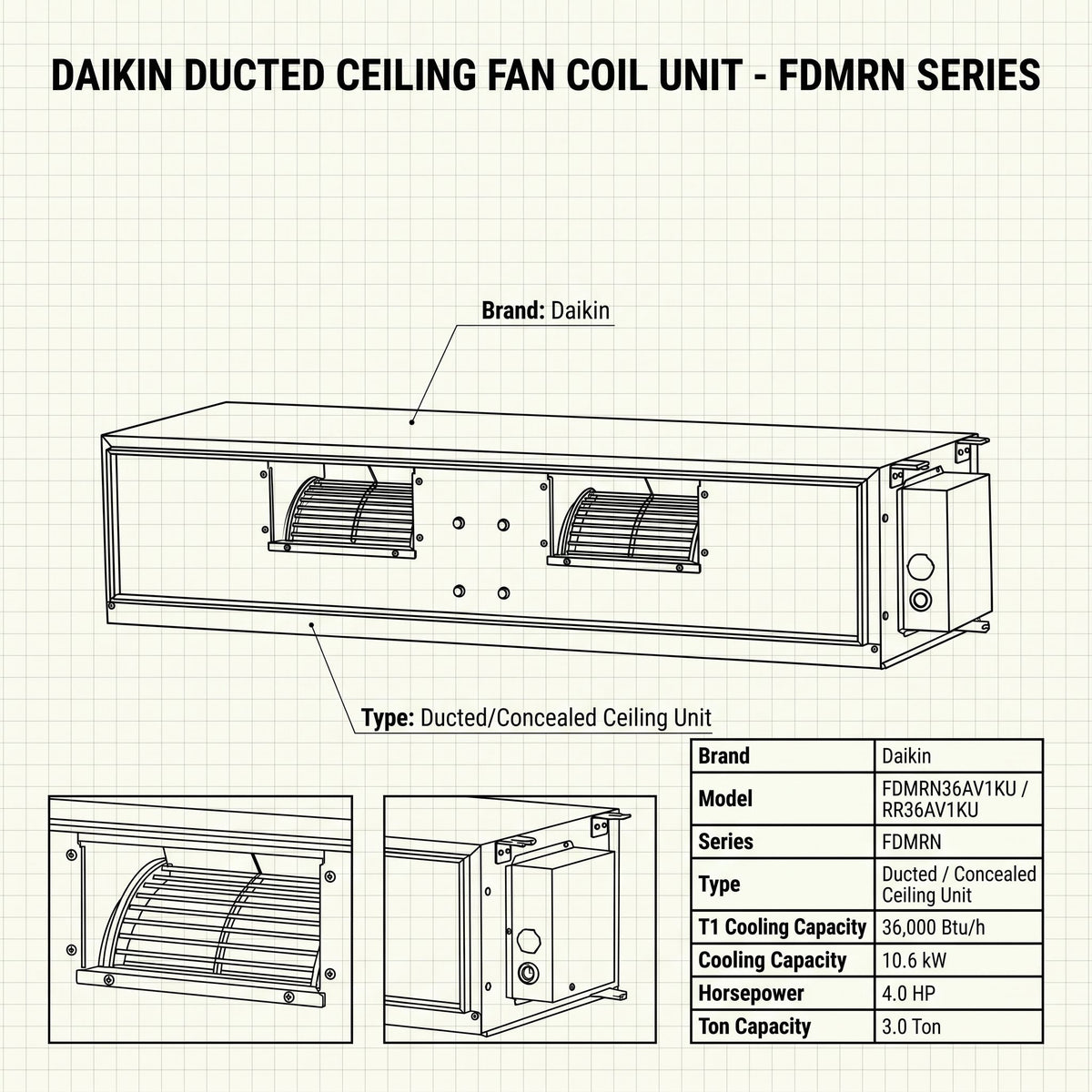

Technical Parameters

Specification Details
Indoor Model FDMRN36AV1KU
Outdoor Model RR36AV1KU
Power Supply 230V / 1Ph / 50Hz
Cooling Capacity T1 36,000 Btu/h / 10.55 kW
Cooling Capacity T3 32,000 Btu/h / 9.38 kW
EER T1 12.15 Btu/h/W
EER T3 9.01 Btu/h/W
ESP Range High Fan 50 / 75 Pa
Indoor Airflow 1,496 / 1,387 / 1,260 CFM
Indoor Noise Level 44 / 42 / 41 dB(A)
Indoor Dimensions 378 × 1,287 × 541 mm
Refrigerant Type R-410A
Compressor Type Rotary
Total Piping Length 50 m
Vertical Piping Length 30 m
Operating Temperature Range 19°C – 54°C

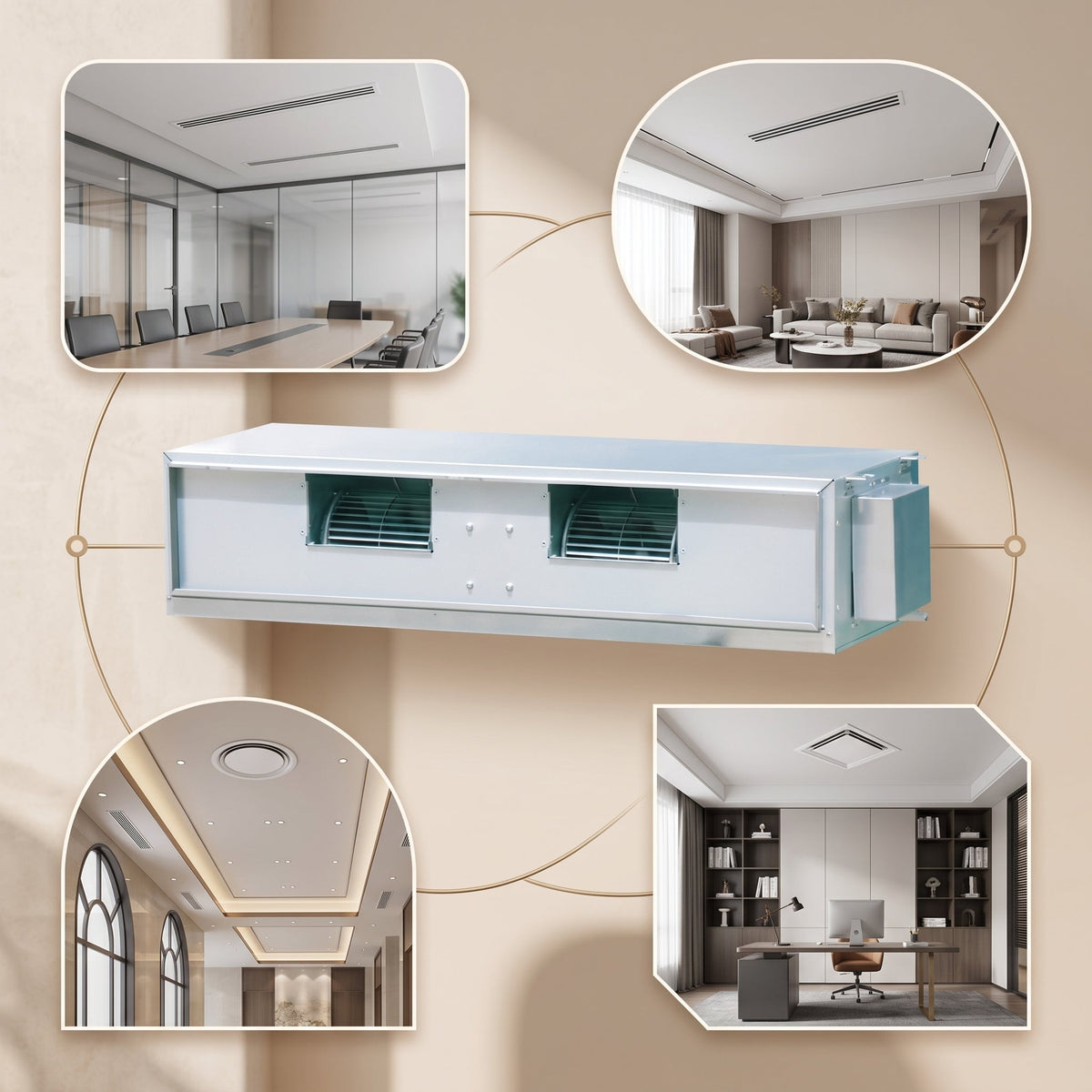

Application Scope

Application Area Details
Villas Ideal for concealed ducted cooling in large rooms
Bedrooms Quiet operation with hidden ceiling installation
Hotels Suitable for premium room comfort and clean interior design
Offices Provides ducted cooling without visible wall units
Apartments Good choice for modern interiors requiring hidden AC systems
Commercial Spaces Flexible duct design for larger indoor cooling requirements

Main Benefits

  • Hidden ceiling installation for a clean interior look
  • Strong 36,000 Btu/h cooling capacity
  • R-410A refrigerant with zero ozone depletion potential
  • Efficient operation for lower electricity consumption
  • Quiet indoor performance for comfort
  • Flexible duct design with adjustable ESP
  • Long airflow for wider cooling coverage
  • Double drain pan protection against leakage
  • Anti-corrosion protection for durability
  • Auto random restart after power failure
