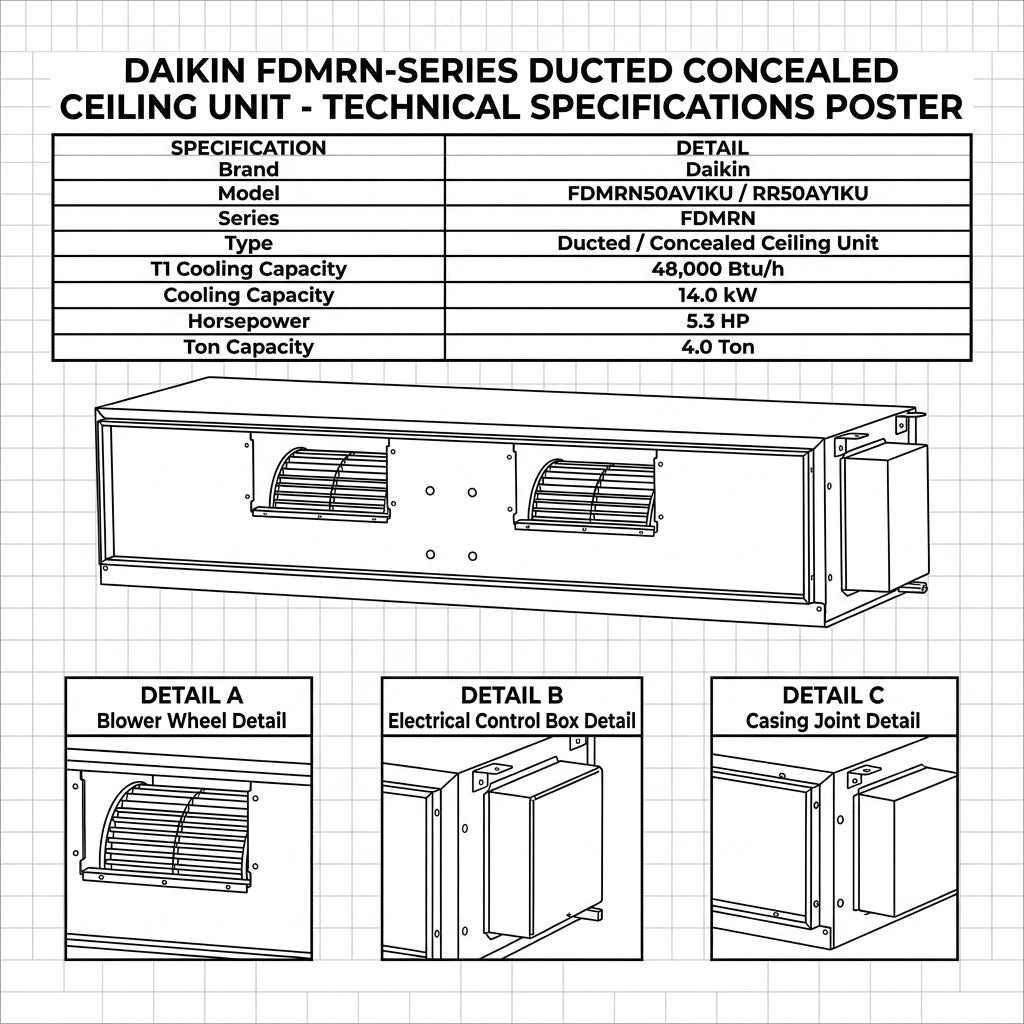

Daikin Ducted Split Air Conditioner 4.0 Ton 14.0 kW 5.3 HP 48,000 Btu/h FDMRN50AV1KU / RR50AY1KU

Key features

The Daikin FDMRN50AV1KU / RR50AY1KU is designed to provide powerful, efficient, and discreet cooling for residential and commercial spaces. The indoor unit is concealed within the ceiling, giving the room a clean interior look while delivering comfortable airflow through ducts. Key Features Feature Details Brand Daikin Series FDMRN Series Indoor...

Shop with confidence

Payment Badge
Fast Delivery
Payment Badge
Buy Now Pay Later
Payment Badge
Secure Payments
Payment Badge
Trusted Quality

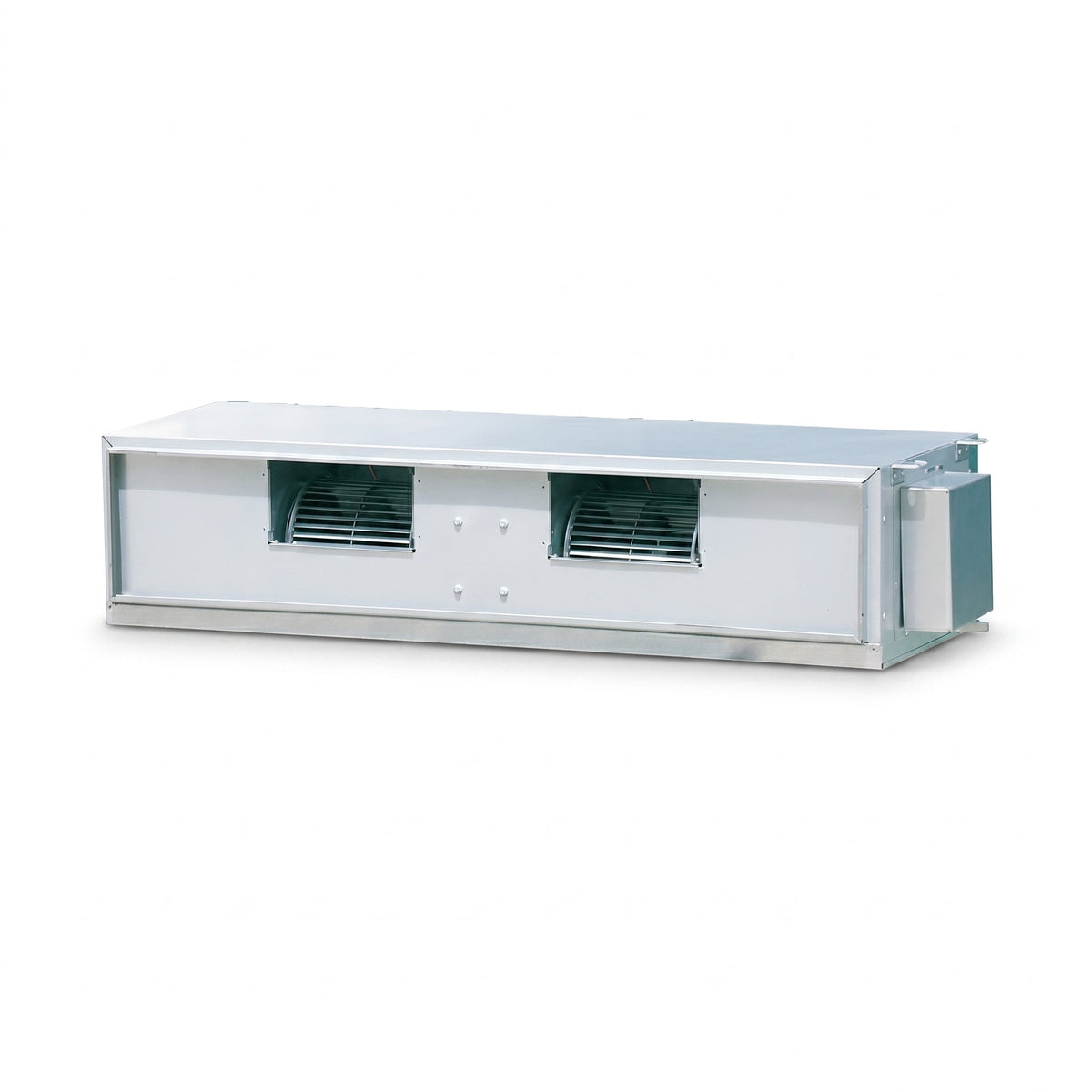

The Daikin FDMRN50AV1KU / RR50AY1KU is designed to provide powerful, efficient, and discreet cooling for residential and commercial spaces. The indoor unit is concealed within the ceiling, giving the room a clean interior look while delivering comfortable airflow through ducts.

Key Features

Feature Details
Brand Daikin
Series FDMRN Series
Indoor Model FDMRN50AV1KU
Outdoor Model RR50AY1KU
Product Type Concealed ceiling / ducted AC
Cooling Type Cooling only
Refrigerant R-410A
Installation Type Concealed ceiling installation
Compressor Type Scroll compressor
Main Application Homes, offices, villas, hotels, and commercial interiors
Main Benefit Invisible cooling with strong and reliable performance

Product Features

Feature Description
Concealed Ceiling Design Installed above the ceiling for a clean, invisible air-conditioning solution.
R-410A Refrigerant Uses R-410A refrigerant with zero ozone depletion potential.
Powerful Cooling Provides strong cooling performance even when outdoor temperatures are high.
Energy Saving Operation Designed for efficient operation to help reduce electricity consumption.
Optimal Cooling Comfort Includes comfort modes such as Turbo Mode, Sleep Mode, and Dry Mode.
Whisper Quiet Operation Indoor sound level can be reduced for quieter room comfort.
High Design Flexibility Wide external static pressure range supports flexible duct design.
Easy Installation Outdoor unit can be mounted on a roof or placed against an outside wall.
Double Protection Drainage System Reinforced drainage protection helps reduce water leakage risk.
Standard Anti-Corrosion Protection Helps protect important components for longer service life.
Auto Random Restart Automatically restarts after power failure while helping prevent sudden power surge.
Long Airflow Designed to deliver airflow over longer distances for large spaces.

Technical Parameters

Specification Details
Indoor Model FDMRN50AV1KU
Outdoor Model RR50AY1KU
Power Supply 380–415V / 3Ph / 50Hz
Cooling Capacity T1 48,000 Btu/h / 14.07 kW
Cooling Capacity T3 43,600 Btu/h / 12.78 kW
EER T1 11.62 Btu/h/W
EER T3 8.55 Btu/h/W
ESP Range High Fan 50 / 75 Pa
Indoor Airflow 1,726 / 1,441 / 1,300 CFM
Indoor Noise Level 46 / 44 / 41 dB(A)
Indoor Dimensions 378 × 1,487 × 541 mm
Refrigerant Type R-410A
Compressor Type Scroll
Total Piping Length 50 m
Vertical Piping Length 30 m
Operating Temperature Range 19°C – 54°C

Application Scope

Application Area Details
Villas Ideal for discreet cooling in large rooms and living spaces
Hotel Rooms Hidden AC installation for premium interior design
Offices Suitable for ducted cooling with clean ceiling appearance
Retail Spaces Provides powerful cooling without visible wall-mounted units
Commercial Interiors Flexible ducting and airflow for larger indoor areas
Large Bedrooms Quiet and comfortable cooling performance

Main Benefits

  • Concealed ceiling design keeps interiors clean and elegant
  • Strong cooling capacity for large rooms and commercial areas
  • R-410A refrigerant with zero ozone depletion potential
  • Efficient operation helps reduce electricity usage
  • Quiet indoor performance for comfortable spaces
  • Flexible duct design with adjustable ESP
  • Double drain pan protection against water leakage
  • Anti-corrosion protection for longer durability
  • Auto random restart after power failure
  • Suitable for homes, offices, hotels, villas, and retail spaces
